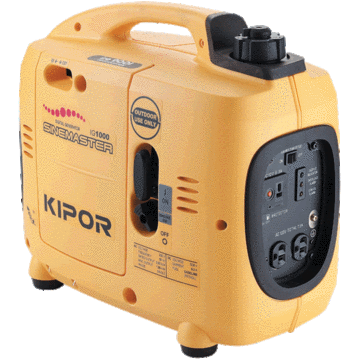

Kipor IG1000 Generator (19-8515)


Kipor IG1000 Generator:

Features and benefits:
*Maximum 1.0KVA output for wide range of applications.
*Low noise design, about 54-59dB(A)/7m.
*Lightweight delivers super portability-only 31lbs.
*4 hours running on a single fuel tank.
*Inverter technology delivers quality output.
*Stylish and patented design.
*Unique and patented air cycle system.


Rated frequency (Hz) 60
Rated voltage(V) 120
Rated current (A) 7.5
Rated speed(r/min) 5500
Rated output (kVA) 0.9
Max. output (kVA) 1.0
DC output 12V-8.3A
Phase number Single
Current circuit breaker Inverter Controlled
Structural type Enclosed
Fuel capacity .7 Gal.
Set fuel consumption?ig/kW.h?j 550
Continuous running time (hr) (rated output) 4
Noise level (zero load--full load) dB (A)/7m 54-59
Overall dimension(L?~W?~H)?imm) 460?~248?~395
Net weight?ikg?j 14kg 30.8 lbs
Starting system Recoil starter
Fuel type Unlead Gasoline
Lube oil type SAE10W30(above CC grade)
Engine model special for digital generator
Engine type Single cylinder, 4-stroke, OHV, gasoline engine
Bore X Stroke 43.5X36
Displacement(ml) 53.5
Compression ratio 8.5
Ignition system T.C.I
Spark plug A7RTC/UR5
Lowest fuel consumption?ig/kW.h?j 420
